Here are the full specs for AYANEO's upcoming dual-screen portable powerhouse.
We knew this was coming, but now it's official: ever-busy hardware maker AYANEO has shared all on its latest take on a dual-screen handheld, dubbed the FLIP 1S DS.
This new Windows-powered device builds on what AYANEO did with their original line of clamshell handhelds, adding several notable hardware improvements, including a much welcomed OLED screen, a new AMD chipset, and more — it also seems to have a baffling amount of buttons.
The main screen on the FLIP 1s DS is a 7-inch 1080p OLED panel with a 144Hz refresh rate, whereas the smaller 4.5-inch secondary display is an IPS touchscreen with a 1620×1080 resolution. AYANEO shared that this second screen will function as a native Windows extended display — which means that in addition to being useful for split-screen gaming, it should also handle multitasking with ease.
Inside, the new FLIP 1S DS will be powered by AMD’s Ryzen AI 9 HX 370 chip (what a mouthful that is). The addition of this high-end chip should mean that this new portable can handle triple-A releases without breaking a sweat.
The upcoming portable also includes an upgraded 'dual heat dissipation' cooling system, with both a vapor chamber and active air cooling to help maintain performance under load.
It rocking such a kick-ass chip and serious cooling all sounds like a big positive, and are undoubtedly the hallmarks of a flagship handheld, but it also just kinda feels like overkill for something that will likely be used for emulating DS games on. 😅 Just me?

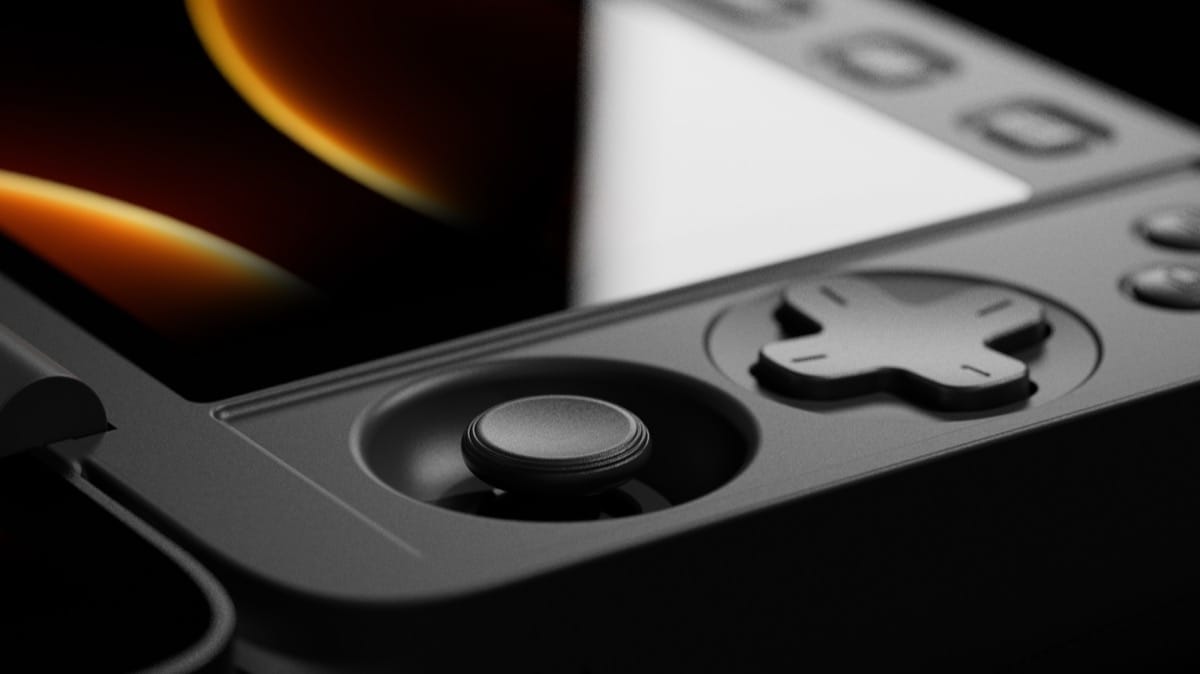

Anyway, other improvements here include a rather lovely looking metal chassis, an improved, adjustable hinge, TMR electromagnetic joysticks — the first Windows handheld to feature them apparently — and dual USB4 ports for fast charging and data transfer.
In addition to Windows, the device also runs AYANEO’s own AYASpace software. Version 3.0 introduces various new UI elements and a console-style system pause function.
All told, this looks like a solid upgrade on AYANEO's original dual-screen FLIP.
AYANEO FLIP 1s DS Specification
| ** Main Screen ** | 7" 1920*1080 144Hz OLED | 800 nits high brightness |
| ** Secondary Screen ** | 4.5" 1620*1080 LCD | 3:2 ratio |
| ** CPU ** | AMD Ryzen AI 9 HX 370 |
| ** Memory ** | LPDDR5X |
| ** Storage ** | M.2 2230 PCle 4.0 SSD |
| ** Cooling ** | Large VC + Air Cooling System |
| ** Mouse ** | Optical Finger Mouse |
| ** Handle ** | Master Controller |
| ** Joystick ** | TMR Electromagnetic Medium Joystick with 1000Hz Polling Rate |
| ** Trigger ** | Linear Hall Effect Trigger |
| ** Vibration Motor ** | Dual X-axis Linear Vibration Motor |
| ** Gyroscope ** | Six-axis Gyroscope |
| ** Ports ** | 2 USB 4 Type-C |
| 1 MicroSD Card Slot | |
| ** ** | 3.5mm Headphone Jack |
| ** Biometric Function ** | Power Button Integrated Fingerprint Recognition |
| ** Connectivity ** | High-speed Wi-Fi / Bluetooth 5.3 |
| ** Software Management ** | AYASpace 3.0 |
| ** Operating System ** | Windows 11 (64-bit Home) |
